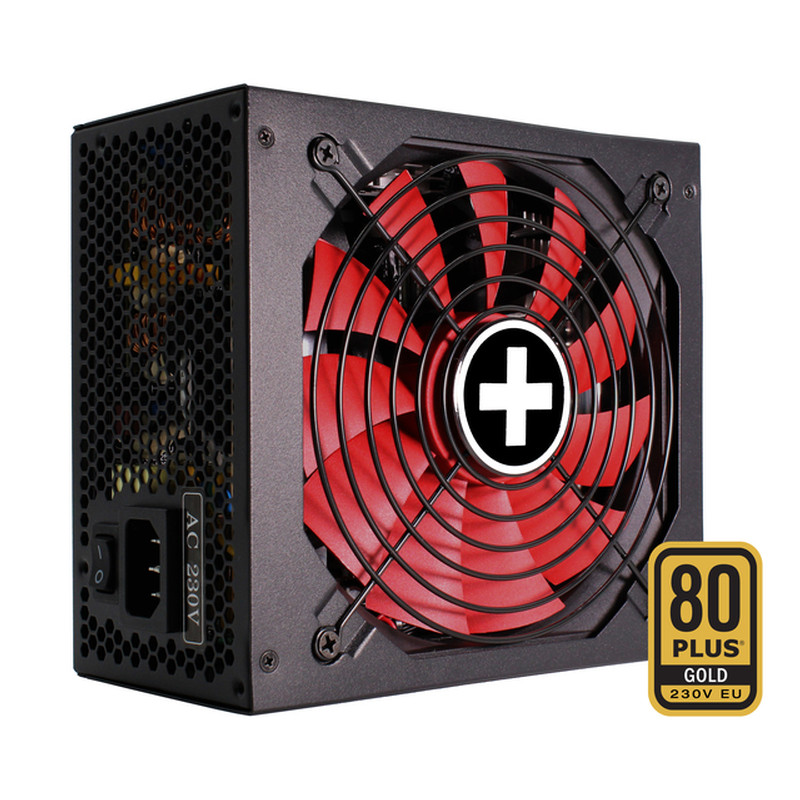

XILENCE napajanje 850W 80PLUS Gold Performance X+
- The semi-modular power supplies of the X+ series are capable of absorbing high load peaks above the normal rated power in the shortest possible time and comply with Intel's Design Guide 3.0.
- Thus, the power supplies are ideally suited for driving the latest and most powerful gaming graphics cards with PCI Express 5 specifications
- An 80+ Gold certification confirms a high efficiency and energy efficiency of this power supply series
- Six different protection circuits (OCP, OVP, UVP, SCP, OPP, OTP) ensure safe operation even in heated gaming sessions
- The fans of the ATX 3.0 power supplies run with Fluid Dynamic Bearing technology and are very quiet
- In addition, they convince with an extremely long durability and their excellent cooling performance
- All of these specifications make the affordable Performance X+ series ideal for use with the latest gaming PC systems
Features
- 12VHPWR (PCIe Gen 5.0)
- Extremely silent cooling: large 140mm fan
- Excellent air flow design for a better heat dissipation
- Modular cable management
- Following safety design:
* OVP (Over Voltage Protection)
* UVP (Under Voltage Protection)
* OCP (Over Current Protection)
* OTP (Over Temperature Portection)
* SCP (Short Circuit Protection)
* OLP (Over Load Protection
- Low stand-by consumption
- High energy efficiency: 80+ GOLD and EcoPSU certified (complies with ErP2014 norm)
- Active-PFC
Technical data
GENERAL
- Form factor ATX 12V: Version 3.0
- Model: Performance X+ | XP850MR9.2
- PFC: Active
OUTPUT
* +3.3V: 20.0A
* +5V: 20.0A
* +12V1: 70.8A
* -12V: 0.3A
* +5Vsb: 3.0A
FAN / COOLING TECHNOLOGY
- Fan Size: 140 mm
PROTECTION
- OCP (over current protection)
- OVP (over voltage protection)
- UVP (under voltage protection)
- SCP (short circuit protection)
- OTP (over temperature protection)
- OPP (over power protection)


ECO / EFFICIENCY
- Efficiency (%) at 230V, 20% load: 92%
- Efficiency (%) at 230V, 50% load: 93%
- Efficiency (%) at 230V, 100% load: 92%
ENVIRONMENTAL
- ErP, WEEE, RoHS
CABLE MANAGEMENT / CONNECTORS
- Modular cable management: Yes
- Cable length to mainboard: 650 mm
- Cable length to first connector: 500 mm
- Maximum cable length: 950 mm
- Sleeved cables: Yes
- ATX-Motherboard (20+4-pin): 1
- P4+4 (CPU): 1
- P8 (CPU): 1
- PCI-E 6+2-pin (GPU): 3
- SATA 15-pin (HDD, Drives): 6
