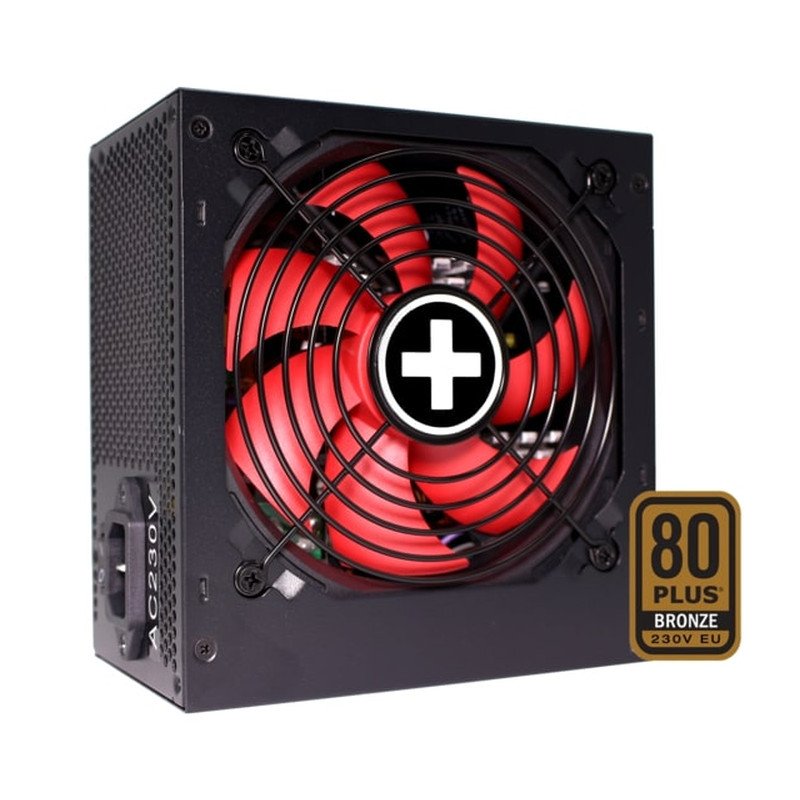

XILENCE napajanje 850W 80PLUS Bronze Gaming
- The new successful Gaming series combines high performance with a low noise level and high effciency
- The new DC/DC technology guarantees for increased efficiency and a maximum tension stability even during excessive gaming
- Thanks to this high efficiency and the associated 80+ BRONZE certification high electricity costs are now a thing of the past
- Six integrated safety ciruits provide for an all-time safe operation and the sleeved main cable harness ensures order in the PC case
Features
- Extremely silent cooling: large 120mm fan
- semi-modular cable management
- Excellent air flow design for a better heat dissipation
- Full safety design:
* OVP (Over Voltage Protection)
* UVP (Under Voltage Protection)
* SCP (Short Circuit Protection)
* OPP (Over Power Protection)
- Low stand-by consumption
- High energy efficiency: 80+ BRONZE certified (complies with ErP2014 norm)
- Active-PFC
Technical data
- Continuous power: 850W
- Form factor ATX 12V: Version 2.52
- Voltage: 200 - 240 Vac
- Frequency: 50Hz
- Input current: 10A
- PFC: active
OUTPUT
* +3.3V: 20A
* +5V: 20A
* +12V1: 62.5A
* -12V: 0.3A
* +5Vsb: 3.0A
- Max. combined power 12V: 750W
- Max. combined power 3.3V + 5V: 100W
FAN / COOLING TECHNOLOGY
- Bearing technology: FDB
- Fan size: 120mm
PROTECTION
- OVP (over voltage protection): Yes
- UVP (under voltage protection): Yes
- SCP (short circuit protection): Yes
- OPP (over power protection): Yes
ECO / EFFICIENCY
- 80PLUS certification: Bronze
ENVIRONMENTAL DIRECTIVES
- ErP: Yes
- WEEE: Yes
- RoHS: Yes
CABLE MANAGEMENT / CONNECTORS
- Modular cable management: Yes
- Cable length to mainboard: 500mm
- Cable length to first connector: 450mm
- Maximum cable length: 750mm
- No. of cables: 7
- ATX-Motherboard (20+4-pin): 1
- P4+4 (CPU): 1
- PCI-E 6+2-pin (GPU): 2
- PATA 4-pin: 3
- SATA 15-pin (HDD, Drives): 6
