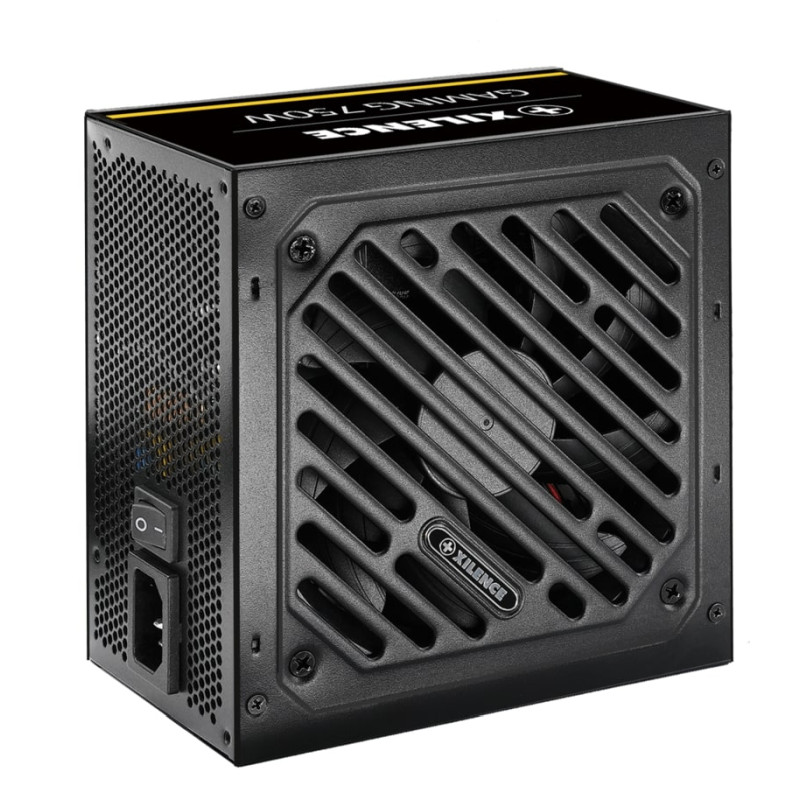

XILENCE napajanje 650W 80PLUS Gold Gaming
- The Gaming GOLD Series is a PC power supply series with a fixed cable harness, as well as a 750W ARGB variant
- The noble design with its black powder coating, the 120mm silent, black or transparent fan and the fan grille emphasizes the valuable character of this series
- The maximum voltage stability and the six integrated safety circuits ensure safe operation even in heated workflows or gaming sessions
- The power supplies are suitable for the highest demands in gaming, multi-media application and streaming areas and have low power consumption during these intensive phases
- The power supplies achieve the 80+ GOLD requirements
Features
- Whisper-quiet cooling: Large 120mm fan*
- Excellent airflow design for improved heat dissipation
- With the following safety equipment:
* OVP (overvoltage protection)
* UVP (Undervoltage Protection)
* SCP (short circuit protection)
* OLP (overload protection)
* OTP (over temperature protection)
* OCP (overcurrent protection)
- Low standby power consumption
- High energy
Technical data
- Continuous power (W): 650
- Form factor ATX 12V: Version 2.52v
- Voltage (Vac): 200-240V
- Mode: Gaming | XP650R12
- Frequency (Hz): 50Hz-60Hz
- Input current (A) 6.3
- PFC: active
Output
* +3.3V (A): 20
* +5V (A) : 20
* +12V1 (A): 54.1
* -12V (A): 0.3
* +5Vsb (A): 3
* Max. combined power 12V (W): 650
* Max. combined power 3.3V + 5V (W): 100
* +12V2 (A): Yes
Fan / Cooling technology
- Bearing technology: Hydro Bearing
- Fan size (mm): 120
Protection
- OCP (over current protection): Yes
- OVP (over voltage protection): Yes
- UVP (under voltage protection): Yes
- SCP (short circuit protection): Yes
- OTP (over temperature protection): Yes
- OPP (over power protection): Yes
Eco / Efficiency
- 80PLUS certification: meet 80+ Gold
- Efficiency (%) at 230V, 20% load: 90
- Efficiency (%) at 230V, 50% load: 93
- Efficiency (%) at 230V, 100% load: 92
Environmental directives
- ErP: Yes
- WEEE: Yes
- RoHS: Yes
Cable management / Connectors
- Modular cable management: -
- Cable length to mainboard (mm): 550
- Cable length to first connector (mm): 550
- Maximum cable length (mm): 600
- Sleeved cables: Yes
- No. of cables: -
- ATX-Motherboard (20+4-pin): -
- P4+4 (CPU): 2
- P8 (CPU): 1
- PCI-E 6-pin (GPU): -
- PCI-E 6+2-pin (GPU): 3
- PATA 4-pin: -
- SATA 15-pin (HDD, Drives): 6
- FDD (Floppy): -
